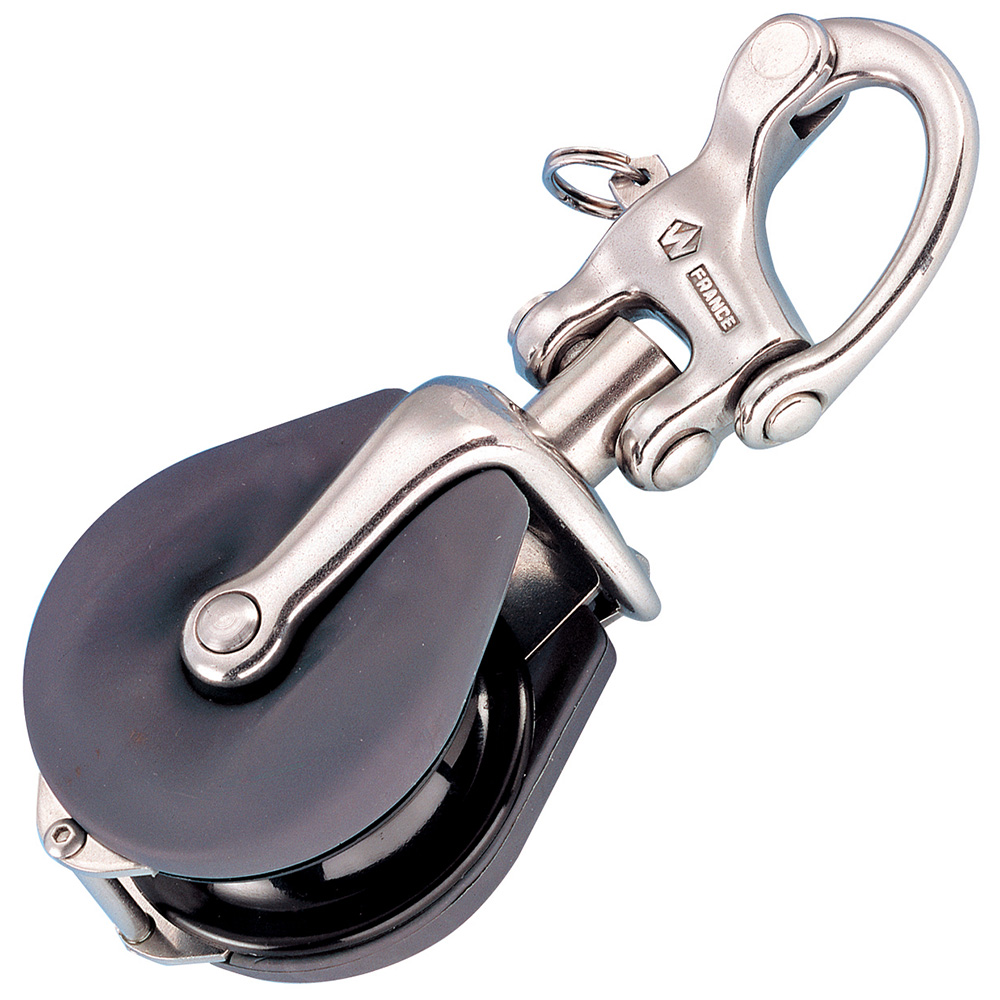

Wichard Snatch Block w/Snap Shackle - Max Rope Size 12mm (15/32")
|
Special Order
BC, Warehouse
"Special Order" items will take longer to process and ship then "Express" items. Typically takes no more then 14 days for delivery. For next day parts. Visit our express parts catalog Here. In Stock
|
$406.01
You save:
$71.64
Back to: Blocks
Snatch Block with Snap Shackle - Max Rope Size 12mm (15/32")
Features:
- Free rotation thanks to snap shackle
- Very strong closing system
- Easy opening by simply pulling on the plunger pin
- Shock and scratch-resistant thanks to the elastomer molded cheeks
Applications:
- Changing sheets
- Spinnaker sheet deflector blocks
Materials:
- HR 17.4 PH forged stainless steel arm
- Elastomer molded cheeks
- Composite sheave
Specifications:
- Rope size: (inch) 15/32" / (mm) 12
- Length: (inch) 5 45/64" / (mm) 145
- Width: (inch) 2 21/64" / (mm) 59
- Thickness: (inch) 1 11/16" / (mm) 43
- Working Load: (lb) 1580 / (kg) 720
- Breaking Load: (lb) 2860 / (kg) 1300
- Weight: (lb) 0.56 / (g) 254
Caption:
- Working Load (WL): For nautical applications
- Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5
*Sold as an Individual
Documentation
| Quick Guide | Download PDF |
|---|
