Wichard U-Bolt Pad Eye - 10mm Diameter - 25/64" - 110mm Length - 4-21/64"
|
Special Order
BC, Warehouse
"Special Order" items will take longer to process and ship then "Express" items. Typically takes no more then 14 days for delivery. For next day parts. Visit our express parts catalog Here. In Stock
|
$85.44
You save:
$15.08

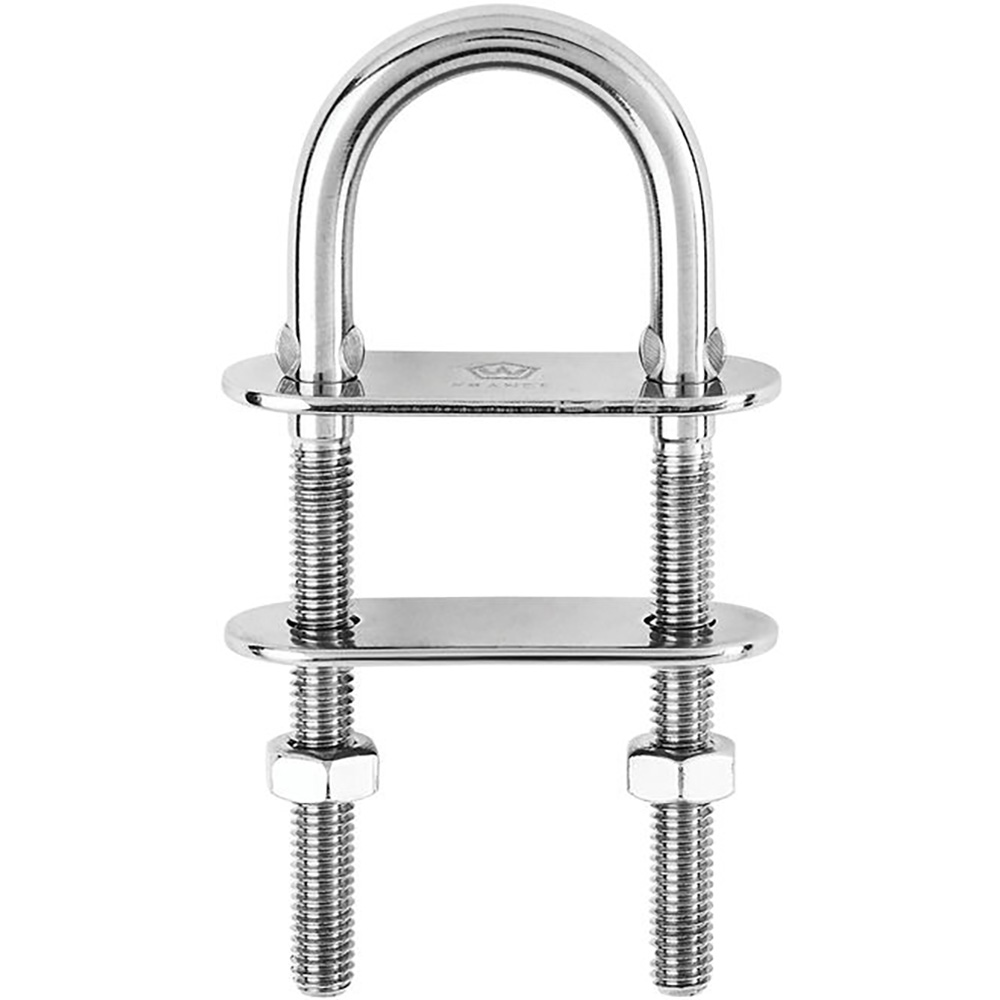

U-Bolt Pad Eye - 10mm Diameter - 25/64" - 110mm Length - 4-21/64"
Features:
- Entirely drop forged product with high-quality stainless steel
- Outstanding working and breaking loads
- For any fastening applications (shrouds, lifelines, blocks...)
- Delivered with bolts and counter-plate
- Max tightening torque: 36 Nm
Applications:
- Various fastening applications: shrouds, lifelines, blocks…
Specifications:
- Materials: 316L stainless steel grade
- Working load: (lb) 7930 / (kg) 3600
- Breaking load: (lb) 15430 / (kg) 7000
- Weight: (lb) 0.489 / (g) 222
Dimensions:
- A: (inch) 1 37/64" / (mm) 40
- B: (inch) 1 17/64" / (mm) 32
- C: (inch) 2 9/16" / (mm) 65
- D diameter: (inch) 25/64" / (mm) 10
- Length: (inch) 4 21/64" / (mm) 110
Caption:
- Working Load (WL): For nautical applications
- Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5
*Sold as an Individual
Documentation
| Quick Guide | Download PDF |
|---|
