Racor
75500MAX2

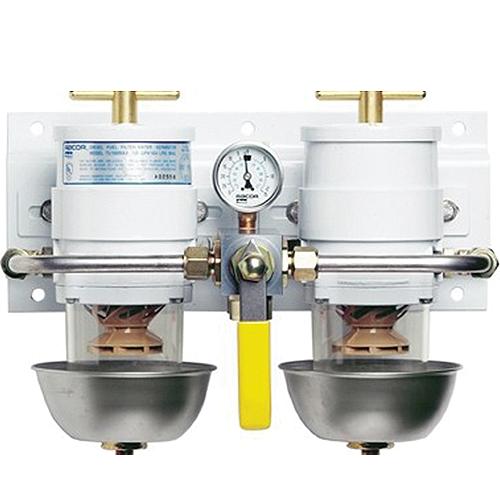

Racor 75500Max2 Turbine Series Dual Fuel Filter W/ Rotary Valve, 2 Microns - 75500Max2 - 62-75500Max2F1

LSN 62-75500MAX2 MPN 75500MAX2 UPC 706672000699 MFR Racor
Express
ON, Warehouse

"Express" items are automated and typically shipped out next available business day and delivered within 4 day.
In Stock
$2,516.45
Canadian Dollars
My Wishlist
Compare
Switch to a new filter without shutting down! A single valve on all of the double-manifold MAX models isolates one filter/separator for service while the other keeps operating. You keep running while draining contaminants from the other bowl or changing the filter element.Turbine series filter assemblies are designed to be installed on the vacuum side of the fuel transfer pump for best efficiency and protect precision engine components from dirt, rust, algae, asphaltines, varnishes, and especially water. They remove contaminates from fuel using the following three stage process: Stage One: Separation as fuel enters the filter assembly, it moves through the centrifuge and spins off large solids and water droplets which fall to the bottom of the collection bowl. Stage Two: Coalescing small water droplets bead-up on the surface of the conical baffle and cartridge element. When heavy enough, they too fall to the bottom of the bowl. Stage Three: Filtration proprietary Aquabloc® II cartridge elements repel water and remove contaminants from fuel down to two micron (nominal). They are waterproof and effective longer then water absorbing elements.Turbine series filters are available in sizes to fit any application and are easy to service. MA models are UL Listed and Coast Guard approved for use on boats for hire and use a metal bowl.

Part #:62-75500MAX2
Manufacturer:RACOR
Manufacturer Part #:75500MAX2
UPC:706672000699
Order In Multiples Of:1
GPH60/120
Micron2
Ports3/4"-16 UNF
BowlClear w/Shield
Size11-1/2" H x 14-1/2" W x 9-1/2" D
Fitting Size3/4"-16 UNF
Fuel Filter Bowl TypeClear w/Shield
Gallons Per Hour60 / 120
Microns2

Variations
62-751000MAX2Max Dual Ff/Ws Rot Val
62-751000MAX30Racor 751000MAX30 Turbine Series Dual Fuel Filter W/ Rotary Valve, 30 Microns
62-751000VMA10Racor 751000VMA10 Turbine Series Dual Fuel Filter W/ Rotary Valve, 10 Microns
62-75500MAX30Racor 75500MAX30 Turbine Series Dual Fuel Filter W/ Rotary Valve, 30 Microns
62-75900MAX2Racor 75900MAX2 Turbine Series Dual Fuel Filter W/ Rotary Valve, 2 Microns
62-75900VMA10Racor 75900VMA10 Turbine Series Dual Fuel Filter W/ Rotary Valve, 10 Microns
