12V Replacement Actuator - 101 Standard Series - 15054-001 - 622-15054001F1
|
Express
ON, Warehouse
"Express" items are automated and typically shipped out next available business day and delivered within 4 day. In Stock
|
$465.21
Back to: Lenco
12V actuator for Trim Tabs as well as ski boats and tow boats. Includes Deutsch connector and 6' cable. Mounting brackets sold separately. 101 Standard Series: For Standard trim tab, Edge Mount trim tab, Standard Performance tab and 2008 & prior Air Boat kit
| Part #: | 622-15054001 |
| Manufacturer: | LENCO |
| Manufacturer Part #: | 15054-001 |
| Model Number: | 101 STANDARD |
| UPC: | 874847003186 |
| Order In Multiples Of: | 1 |

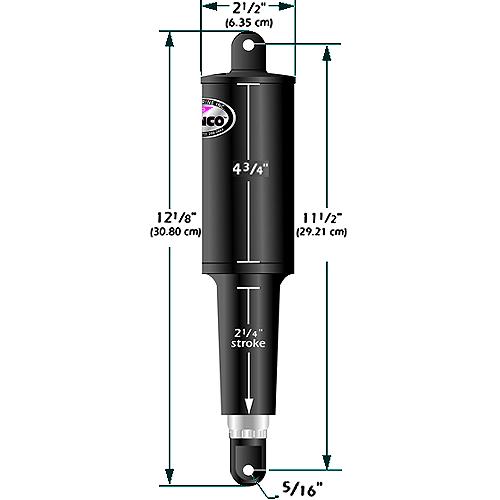

| Model | 101 Standard |
| Length | 12-1/8" |
| Stroke | 2.25" |
| Hole | 5/16" |
| Volts | 12 |
| Type | TT/TB |
| Length: Stroke | 2.25" |
| Voltage | 12 |
Variations
| 622-15055001 | 12V Replacement Actuator - 101 XD Series |
| 622-15056001 | 12V Replacement Actuator - 101 XD Series |
| 622-15057001 | 12V Replacement Actuator - 101 XDS Series |
| 622-15059001 | 12V Replacement Actuator - 102 Standard Series |
| 622-15060001 | 12V Replacement Actuator - 102 XD Series |
| 622-15061001 | 24V Replacement Actuator - 101 Standard Series |
| 622-15117001 | 12V Replacement Actuator - 101 XDS Series |
| 622-15118001 | 12V Replacement Actuator - 102 HD Series |
| 622-15119001 | 12V Replacement Actuator - 1.25 XDS Series |
| 622-15120001 | 12V Replacement Actuator - 1.25 XDS Series |
| 622-15121001 | 12V Replacement Actuator - 1.25 XDS Series |
| 622-15122001 | 12V Replacement Actuator - 1.25 XDS Series |
| 622-15129001 | 12V Replacement Actuator - 102 Fast |
