Chargemaster - 12V 25A - 44010250 - 469-44010250F1
|
Express
ON, Warehouse
"Express" items are automated and typically shipped out next available business day and delivered within 4 day. In Stock
|
$761.70
3-step+ charging method guarantees optimum efficiency, meaning your batteries will perform better and last much longer. Its direct current output is so clean that the battery charger itself can be used as a voltage converter to power things directly. Works with any voltage, with universal input for worldwide use. Plug & play battery charger is MasterBus compatible and can be easily connected to a MasterBus network with only one cable and one connection. Auto Ranging voltage capability allows the chargers to operate worldwide from virtually any power source from 90-265VAC 50 or 60 Hz.44010250: Includes 6.5 feet of cable pre-assembled to the inlet and LED display.
| Part #: | 469-44010250 |
| Manufacturer: | MASTERVOLT |
| Manufacturer Part #: | 44010250 |
| UPC: | 852968002318 |
| Order In Multiples Of: | 1 |
| Amps | 25 |
| Banks | 3 |
| Volts | 12 |
| Size | 9.2"H x 5.2"W x 2.4"D |
| Charge Characteristic | IUoUo, automatic 3-stage + for Gel / AGM / wet / Lithium Ion |
| Charge Current Second Output | 25 |
| Cooling System | vario fan |
| Delay Lower Input Set Point | automatically |
| Display Type | LED display |
| Full Load Consumption | 450 |
| Galvanic Isolation | yes |
| Master Bus Compatible | yes |
| Number of Battery Outlets | 3 |
| Overall Dimensions | 234 x 132 x 60 |
| Power Consumption | <2 mA |
| Power Factor Control | 0.98 |
| Power Supply Mode | yes |
| Protection Degree | IP23 |
| Protections | over temperature, overload, short circuit, high / low battery voltage |
| Recommended Battery Capacity | 50-250 |
| Temperature Compensation | yes |
| Temperature Range (Ambient Temp.) | -25 °C until 60 °C, afnemend < 0 °C en > 40 |
| Total Charge Current | 25 A at 13.25 V |
| Voltage | 12 |
| Weight | 1.8 |

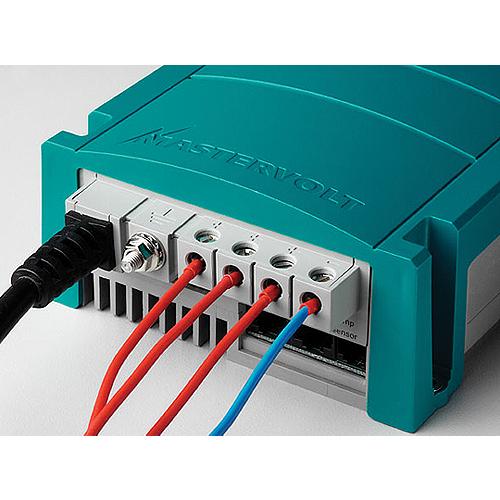

| https://brunswick.scene7.com/is/image/brunswick/469-44010250_AS_Installed?$ASSETS-1500-1500-S$ | https://brunswick.scene7.com/is/image/brunswick/469-44010250?$ASSETS-1500-1500-S$ |
Variations
| 469-44010350 | Chargemaster - 12V 35A |
| 469-44010500 | Chargemaster - 12V 50A |
| 469-44010700 | Chargemaster - 12V 70A |
| 469-44020200 | Chargemaster - 24V 20A |
| 469-44020300 | Chargemaster - 24V 30A |
| 469-44020400 | Chargemaster 24V 40A 3 Output |
| 469-44020600 | Chargemaster 24V 60A 3 Output |
