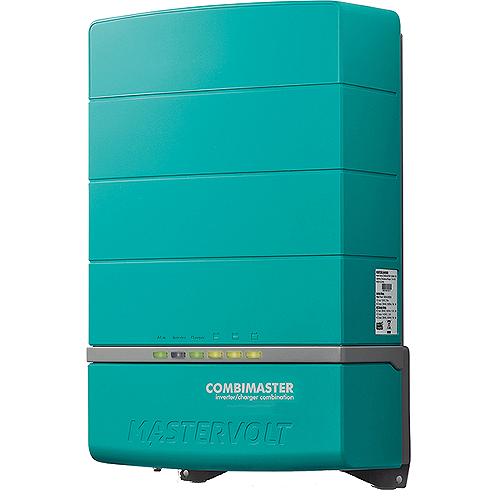

Mastervolt 35513000 Combimaster Inverter/Charger - 35513000 - 469-35513000F1
|
Express
ON, Warehouse
"Express" items are automated and typically shipped out next available business day and delivered within 4 day. In Stock
|
$2,358.84
Designed with the customer in mind and using the latest technology, the CombiMaster range is all about user-friendliness and reliability. But don't let that friendly appearance misguide you: the powerful CombiMaster range drives even the heaviest and most sensitive loads with ease!With the CombiMaster, power dips and failures belong to the past. The automatic AC transfer system switches between generator or mains and inverter output, ensuring a constant power supply. Its Power Assist function prevents tripping of the mains fuse in case you're connected to a weak land line or small generator.The CombiMaster range delivers unmatched performance and value for money. As you would expect from Mastervolt, the CombiMaster is completed with MasterBus, CZone and NMEA 2000 compatible communication, allowing for a broad range of monitoring and system integration options. Remote and Monitoring options: MasterBus compatible via SmartRemote or EasyView 5 displayCZone / NMEA 2000 compatible via Touch 5 or Touch 10 displayNMEA 2000 compatible via 3rd party multifunctional display Features:Most compact and lightweight Combi in its classReliable, hum-free and longer operation from your batteriesStarts even the heaviest and most sensitive loadsIntelligent 3-step+ battery charger for faster and safer chargingAutomatic switching between mains and inverter modePower Assist prevents blown mains fusesGenerator compatibleIntegrated CZone, MasterBus and NMEA 2000 communication.Quick installation with heavy duty connections.E-mark certified
| Part #: | 469-35513000 |
| Manufacturer: | MASTERVOLT |
| Manufacturer Part #: | 35513000 |
| UPC: | 816882022319 |
| Order In Multiples Of: | 1 |
| Volts | 12V in 120V out |
| Watts | 3000 |
| Charger | 160A |
| AC Input | 30 A (switched) |
| AC Output | 55 |
| Battery No-Load Power Consumption | 30 W (on mode) / <1 mA (off mode) |
| Battery Temperature Sensor | Yes |
| Charge Characteristic | IUoUo, automatic / 3-stage + for wet, Gel / AGM and MLI (configurable) |
| Cooling System | Vario-fan |
| Display Type | LED display |
| Fuse Type | Yes |
| Galvanic Isolation | yes |
| Ground Relay | yes, configurable by mechanical jumper |
| Humidity Protection | protective coating, max. 95% relative humidity, non-condensing |
| Input Voltage Range | 90140 V |
| Master Bus Compatible | yes |
| Maximum Efficiency | 93 |
| Maximum Input Current | 28 A (adjustable) |
| No-load Power Consumption (Energy Saving Mode) | 10 |
| No-load Voltage (Fully Charged) | 300-800 Ah (based on gel batteries, other models may vary) |
| Output Frequency | 60/50Hz (configurable) |
| Output Waveform | pure sine wave |
| Overall Dimensions | 448 x 284 x 155 |
| Peak Power (30 sec) | 4500 W |
| Power Sharing | yes, allows you to select the AC input setting |
| Protection Degree | IP23 (vertical mounting) |
| Protections | over temperature, overload, short circuit, high / low battery voltage |
Variations
| 469-35511500 | Mastervolt 35511500 Combimaster Inverter/Charger |
| 469-35513500 | Mastervolt 35513500 Combimaster Inverter/Charger |
